• Pipe system

Pipe system

Compressed-air line Ø 15mm, 25m (7851194171)
Compressed air lines
  • Roll goods 25 m (price per metre)
Outer Ø Inner Ø Length Material Version Order no.
15 mm 12 mm 25 m Plastic flexible (rolls) 7851194171
22 mm 18 mm 25 m Plastic flexible (rolls) 7851194180

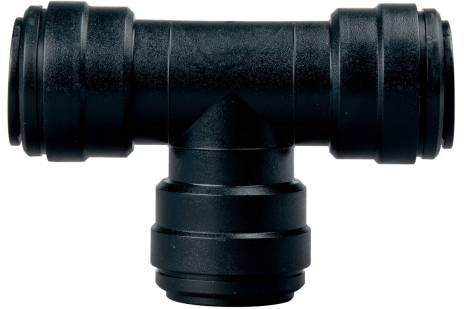

T-plug Connector (7876194010)
T-plug connector
Diameter Material Order no.
15 mm Plastic 7876194010
22 mm Plastic 7876194028
22 mm Plastic 7876615287
Distributors
Order no.
Diffuser can DC 2 x 3/4" (0901059691)
  • Brass thread
  • Without locking screw

 0901059691

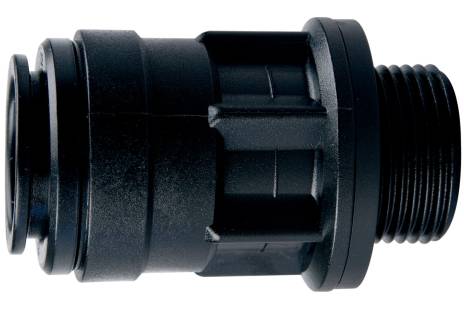

Screw-in Connection (7876193943)
Connections
  • with male thread
Diameter Connecting thread Material Order no.
22 mm 3/4" Plastic 7876193943
15 mm 1/2" Plastic 7876193951
Angle Plug Connector (7876194060)
Angle plug connector
Diameter Material Order no.
15 mm Plastic 7876194060
22 mm Plastic 7876194079

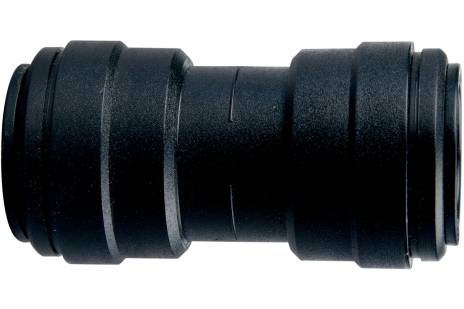

Straight Plug Connector (7876194125)
Straight plug connectors
Diameter Material Order no.
15 mm Plastic 7876194125
22 mm Plastic 7876194133
Pipe Socket (7876193978)
Pipe socket
Diameter Connecting thread Material Order no.
15 mm 1/2" Plastic 7876193978
22 mm 1/2" Plastic 7876193986
22 mm 3/4" Plastic 7876193994
Locking Plug (7876194087)
Locking plug
Diameter Material Order no.
15 mm Plastic 7876194087

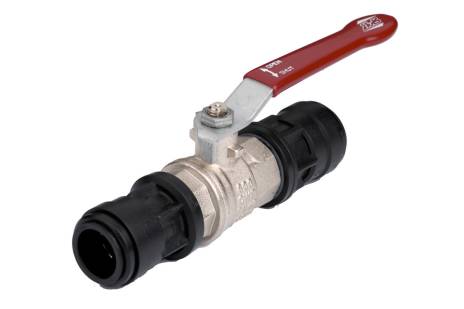

Air Cock (0901059489)
Air cocks
Diameter Connecting thread Order no.
15 mm 1/2" 0901059489
22 mm 3/4" 0901059500

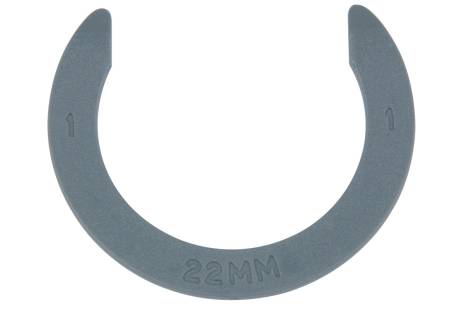

Safety Ring (7876194117)
Safety rings
Diameter Material Order no.
22 mm Plastic 7876194117

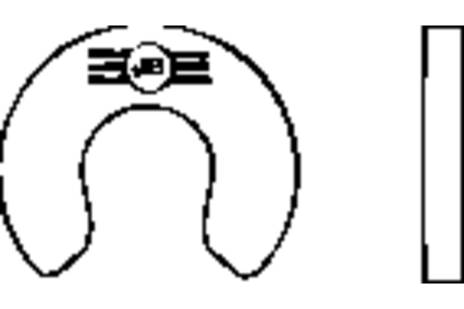

Unlocking Aid (9109194210)
Unlocking aids
Maximum diameter Material Order no.
22 mm Plastic 9109194210
