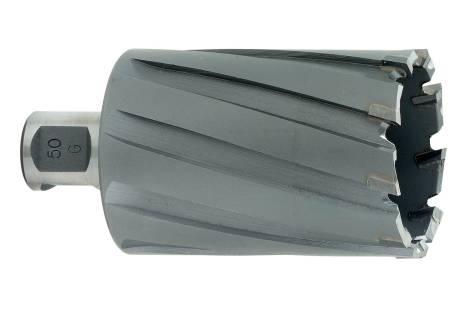

Carbide core drills
Carbide core drills
- Core drill Ø 14 - 60 mm with Weldon shank 19 mm (3/4")
- Core drill as of Ø 70 mm with Weldon shank 32 mm (1 1/4")
- Insert only with suitable centring pin
- Also suitable for higher alloyed steels
| Diameter | Overall length | Working length | Order no. | |
|---|---|---|---|---|
| 14 mm | 90 mm | 55 mm | 626571000 | |
| 16 mm | 90 mm | 55 mm | 626573000 | |
| 17 mm | 90 mm | 55 mm | 626574000 | |
| 22 mm | 90 mm | 55 mm | 626579000 | |
| 25 mm | 90 mm | 55 mm | 626582000 | |
| 26 mm | 90 mm | 55 mm | 626583000 | |
| 27 mm | 90 mm | 55 mm | 626584000 | |
| 28 mm | 90 mm | 55 mm | 626585000 | |
| 29 mm | 90 mm | 55 mm | 626586000 | |
| 30 mm | 90 mm | 55 mm | 626587000 | |
| 31 mm | 90 mm | 55 mm | 626588000 | |
| 32 mm | 90 mm | 55 mm | 626589000 | |
| 33 mm | 90 mm | 55 mm | 626590000 | |
| 34 mm | 90 mm | 55 mm | 626591000 | |
| 35 mm | 90 mm | 55 mm | 626592000 | |
| 36 mm | 90 mm | 55 mm | 626593000 | |
| 37 mm | 90 mm | 55 mm | 626594000 | |
| 38 mm | 90 mm | 55 mm | 626595000 | |
| 39 mm | 90 mm | 55 mm | 626596000 | |
| 40 mm | 90 mm | 55 mm | 626597000 | |
| 50 mm | 90 mm | 55 mm | 626599000 |
