SDS-max dust extraction drill bits

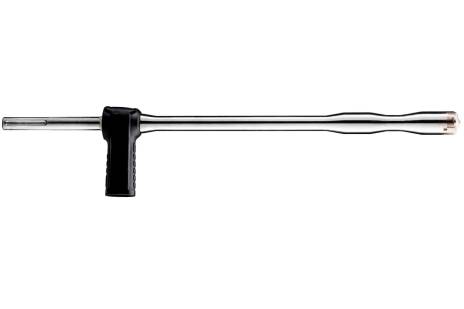

SDS-max dust extraction drill bit 16x600mm (626911000)
Carbide dust extraction drill bit, SDS-max
  • Drilling and cleaning in one work step reduces dust exposure and reworking
  • Greatest reinforcement compatibility, no sagging or clogging thanks to 4-blade-geometry with extra large dust outlets
  • Noticeably fast drilling progress thanks to optimal drill dust removal
  • Innovative head design with greatest concentricity for precise dowel holes
  • Active drill bit cooling for long service life
  • Dust-free drilling for compliance with legal provisions on user safety. Up to 98% less dust in the bore
  • Universal vacuum cleaner adapter fits all standard industrial M and H class vacuum cleaners
  • Kindly observe the installation instructions of the manufacturer when using the chemical installations
Diameter Working length Overall length Shaft type Sales unit Order no.
16 mm 400 mm 600 mm SDS-max 1 626911000
18 mm 400 mm 600 mm SDS-max 1 626912000
20 mm 400 mm 600 mm SDS-max 1 626913000
22 mm 400 mm 600 mm SDS-max 1 626914000
24 mm 400 mm 600 mm SDS-max 1 626915000
28 mm 400 mm 600 mm SDS-max 1 626917000
28 mm 700 mm 900 mm SDS-max 1 626918000
30 mm 700 mm 900 mm SDS-max 1 626920000
32 mm 400 mm 600 mm SDS-max 1 626921000
32 mm 700 mm 900 mm SDS-max 1 626922000
35 mm 400 mm 600 mm SDS-max 1 626923000
35 mm 700 mm 900 mm SDS-max 1 626924000
