Forstner drill bits
Forstner drill bits, similar to DIN 7483 G

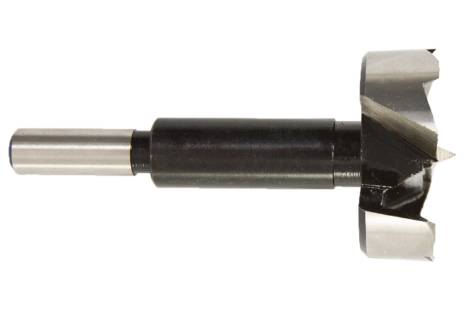

- Forstner drill bit, similar to DIN 7483 G with centring point, 2 main cutters and 2 ring cutters
- For use in hard and soft wood, veneered wooden boards, etc.
- Suitable for drilling blind holes.
| Diameter | Overall length | Shaft Ø | Sales unit | Order no. | |
|---|---|---|---|---|---|
| 10 mm | 90 mm | 8 mm | 1 | 627579000 | |
| 12 mm | 90 mm | 8 mm | 1 | 627580000 | |
| 15 mm | 90 mm | 10 mm | 1 | 627582000 | |
| 16 mm | 90 mm | 10 mm | 1 | 627583000 | |
| 20 mm | 90 mm | 10 mm | 1 | 627585000 | |
| 24 mm | 90 mm | 10 mm | 1 | 627587000 | |
| 25 mm | 90 mm | 12 mm | 1 | 627588000 | |
| 26 mm | 90 mm | 12 mm | 1 | 627589000 | |
| 30 mm | 90 mm | 12 mm | 1 | 627591000 | |
| 32 mm | 90 mm | 12 mm | 1 | 627592000 | |
| 35 mm | 90 mm | 12 mm | 1 | 627594000 | |
| 40 mm | 90 mm | 15 mm | 1 | 627597000 | |
| 45 mm | 90 mm | 15 mm | 1 | 627598000 | |
| 50 mm | 90 mm | 15 mm | 1 | 627599000 |
